Stripe TV

Lightbox

Lightbox

$21,135.00 CAD
$21,135.00 CAD
Sale Sold out

Note: Next batch of Lightboxes available August 1, 2025.

To learn more about financing your Lightbox, view our FAQ page.



Designed to streamline your broadcast, the Lightbox is a compact, all-in-one solution for interconnecting multiple elements of your broadcast.



Unparalleled Connectivity

Lightbox features a full set of broadcast ready I/O, including four bi-directional 12G-SDI connections.

Precise Synchronization

The external reference connector enables precise synchronization with external devices, ensuring that all signals are perfectly aligned.

Powerful Processing

Featuring a 12-core Intel Core i5-1340P processor and Intel Iris Xe graphics Lightbox can handle demanding broadcast workflows.

Intuitive Control

With Lightbox’s integrated touchscreen, easily navigate Stripe OS, set up your SDI connections, and adjust settings with a tap.

Broad Compatibility

Lightbox supports Windows and Linux operating systems, allowing compatibility with industry-standard software such as vMix, OBS, DaVinci Resolve, Premiere Pro, and more.

Broadcast Tools Integration

Integrates with Stripe’s professional software, such as Stripe Score Bug and the included iPad telestrator app – Telestripe Pro.

Steamlined Connectivity

Supports NDI for high-quality video over IP and leverages WebRTC technology via Telestripe Pro for low-latency, remote video workflows.

View full details

Tech Specs

Dimensions

  • Length: 261 mm
  • Width: 192 mm
  • Height: 67 mm

Weight

  • 2.20 kg

Display

    7" LCD Touch Display

  • Resolution: 1024 x 600 pixels
  • Size (W x H): 154.21 x 85.0 mm

Power

Typical Power consumption:

  • 65W

Input requirements:

  • Voltage range: 100-240 VAC
  • Frequency range: 50/60Hz
  • Rated input current: 0.9A

Connectivity

  • AC power inlet
  • 2 x USB Standard-A
  • 2 x USB 3.2 Gen 2 (10 Gbps)
  • 2 x Ethernet R145 (2.5GbE)
  • HDMI 2.1
  • USB Type-C
  • ThunderboltTM 4 (40Gbps)

Wireless

  • Wi-Fi 2x2
  • Bands: 2.4G, 5G
  • Bluetooth 5.2

SDI Video Inputs and Outputs

  • 4 x bidirectional 12G-SDI BNC
  • Supports SD/HD/2K/4K/8K
  • External reference input BNC
  • Tri-Sync or Black Burst

Operating System

  • NixOS or Windows

What's Included

Here's what you get when you purchase the Lightbox:

  • Lightbox
  • Power cord
  • Manual

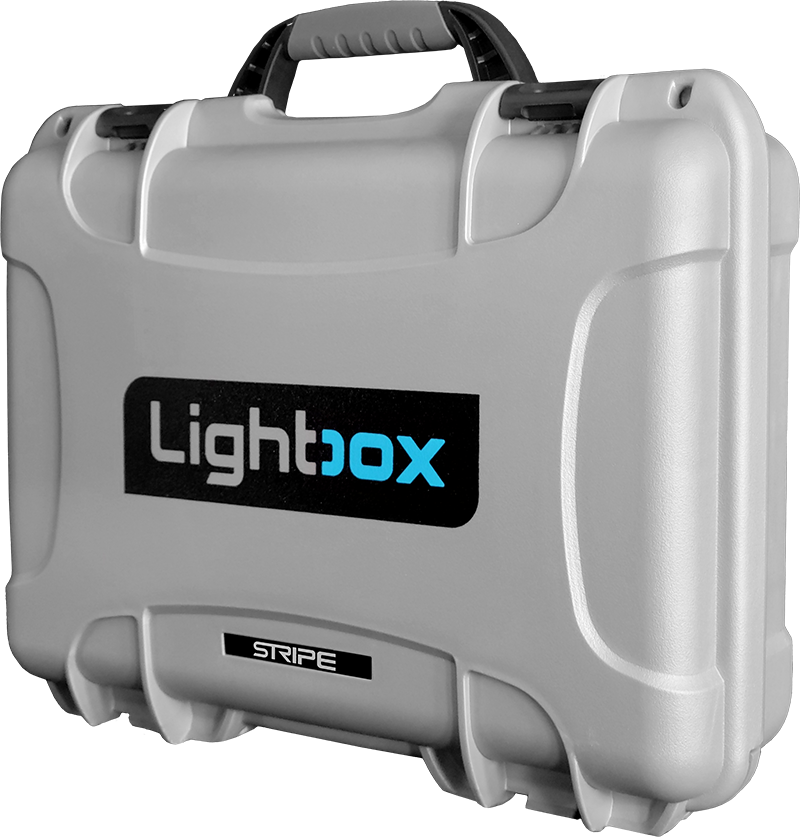

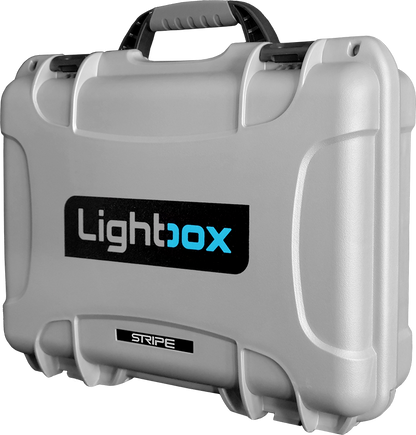

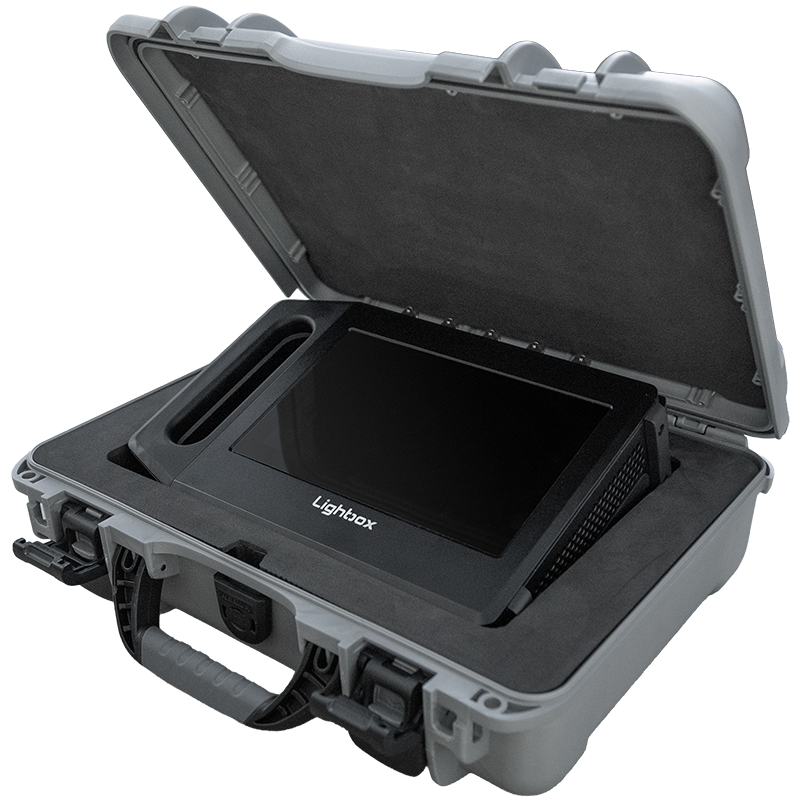

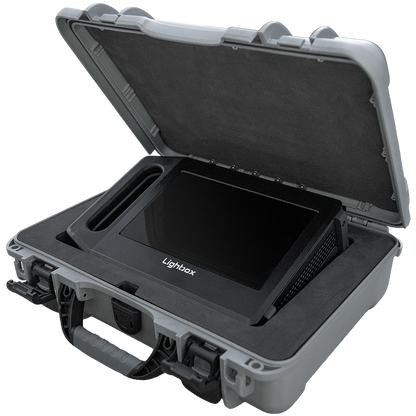

  • Branded travel case with precision-cut foam, custom-designed to securely fit your Lightbox for safe travel.
