Stripe TV

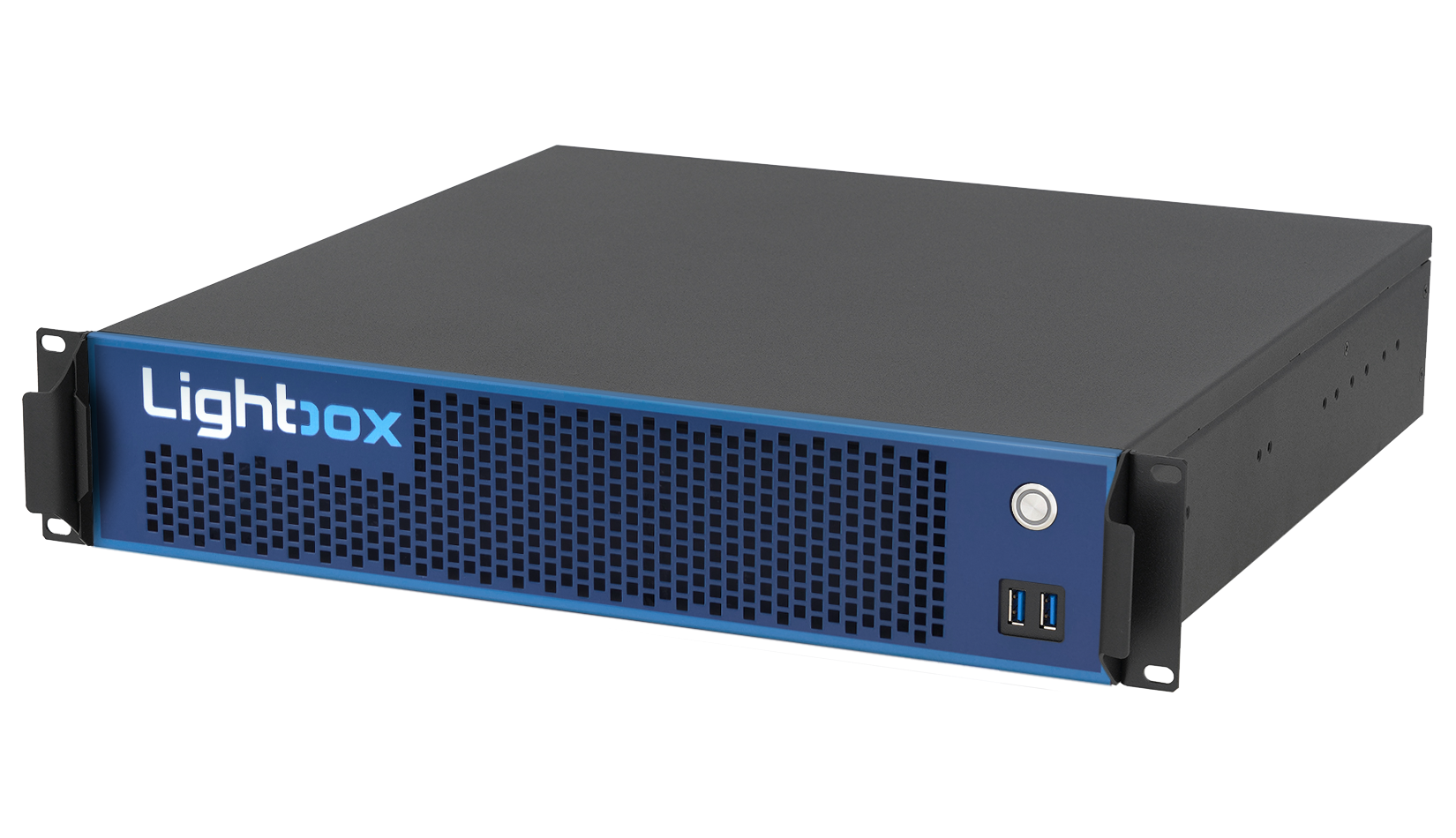

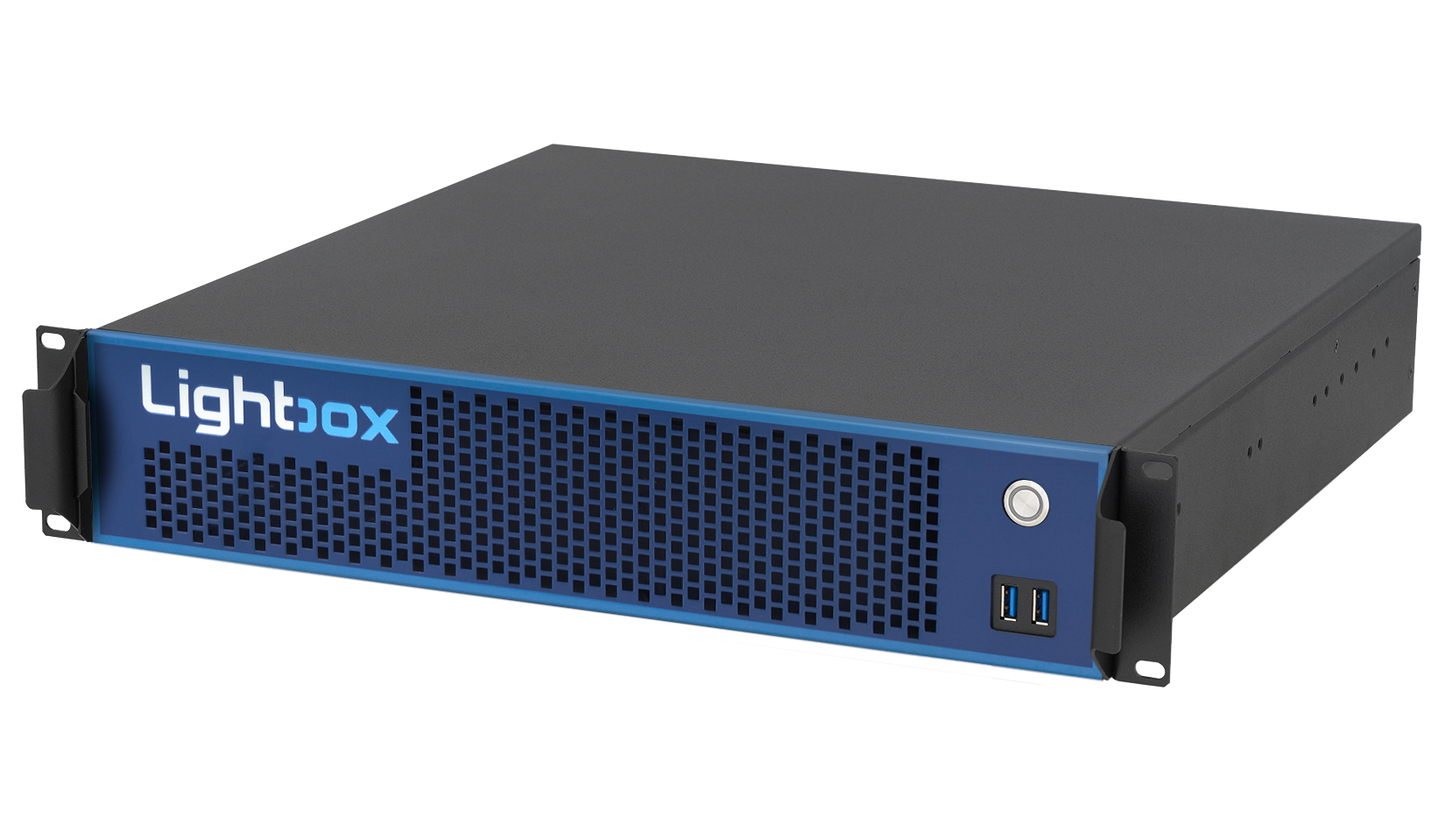

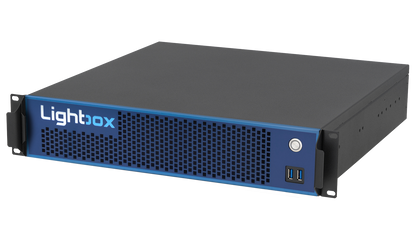

Lightbox SE (Server Edition)

Lightbox SE (Server Edition)

$35,536.00 CAD
$35,536.00 CAD
Sale Sold out

Note: This product is custom-assembled by our team after your order is placed. Please allow up to 2 weeks before shipment.

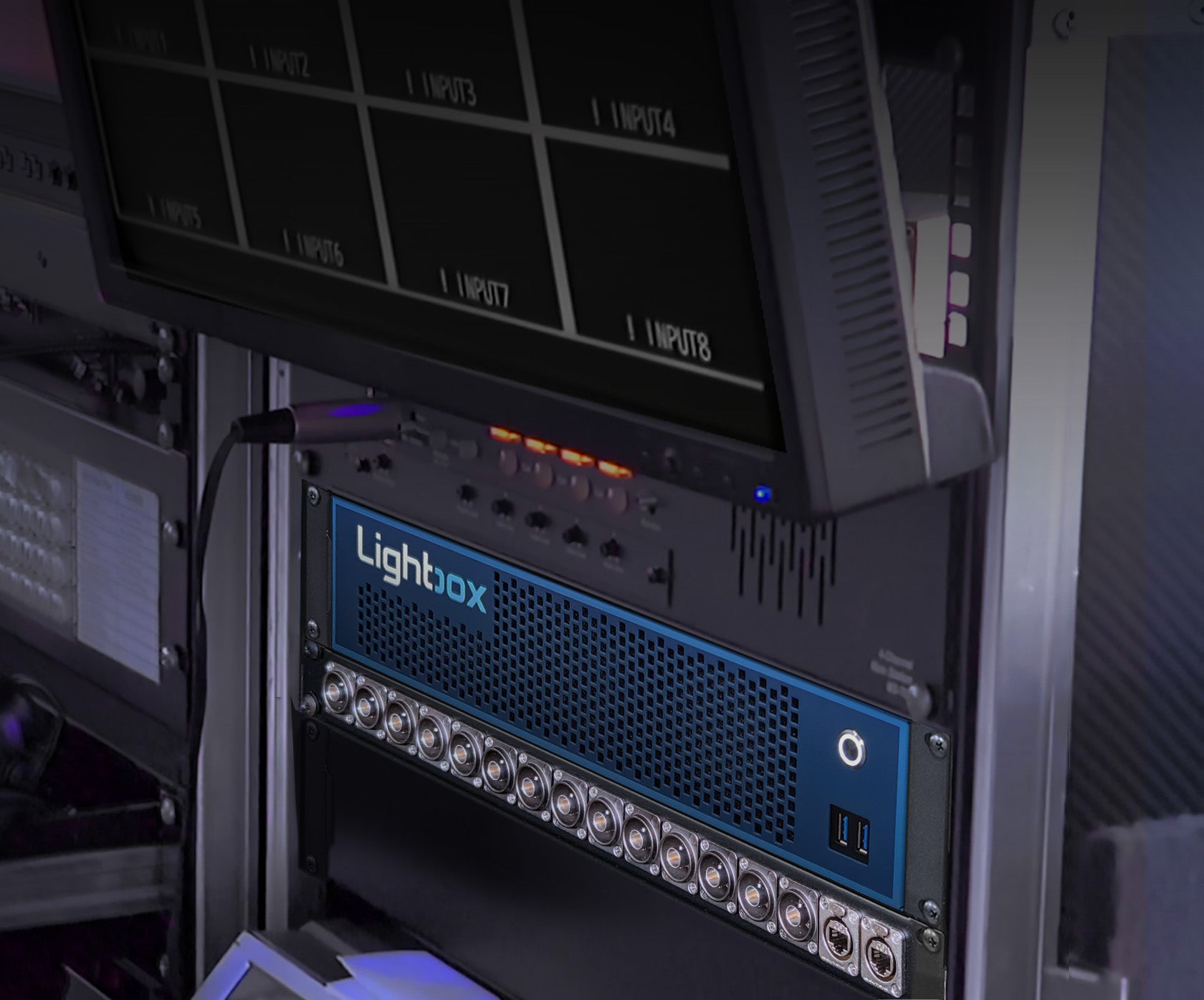

Lightbox SE is the rack-mounted evolution of the Lightbox platform, built for studios and control rooms where uptime and capacity come first. With double the SDI ports, 128GB of RAM, and an enhanced GPU, the SE handles heavier multi-source workloads without breaking a sweat. It runs the same software platform and supports the same growing toolkit of broadcast workflows, just with more horsepower behind it. For facilities that need a permanent, always-on solution that scales with their production demands, the SE is the Lightbox with the ceiling removed.

View full details

Tech Specs

Dimensions

  • Length: 261 mm
  • Width: 192 mm
  • Height: 67 mm

Weight

  • 2.20 kg

Display

    7" LCD Touch Display

  • Resolution: 1024 x 600 pixels
  • Size (W x H): 154.21 x 85.0 mm

Power

Typical Power consumption:

  • 65W

Input requirements:

  • Voltage range: 100-240 VAC
  • Frequency range: 50/60Hz
  • Rated input current: 0.9A

Connectivity

  • AC power inlet
  • 2 x USB Standard-A
  • 2 x USB 3.2 Gen 2 (10 Gbps)
  • 2 x Ethernet R145 (2.5GbE)
  • HDMI 2.1
  • USB Type-C
  • ThunderboltTM 4 (40Gbps)

Wireless

  • Wi-Fi 2x2
  • Bands: 2.4G, 5G
  • Bluetooth 5.2

SDI Video Inputs and Outputs

  • 4 x bidirectional 12G-SDI BNC
  • Supports SD/HD/2K/4K/8K
  • External reference input BNC
  • Tri-Sync or Black Burst

Operating System

  • NixOS or Windows

What's Included

Here's what you get when you purchase the Lightbox:

  • Lightbox
  • Power cord
  • Manual
  • Branded travel case with precision-cut foam, custom-designed to securely fit your Lightbox for safe travel.
